60 Pin 1.0mm Pitch IDC Ribbon Cable Assembly 28 AWG UL2651 200mm

60 Pin 1.0mm Pitch IDC Ribbon Cable Assembly 28 AWG UL2651 200mm

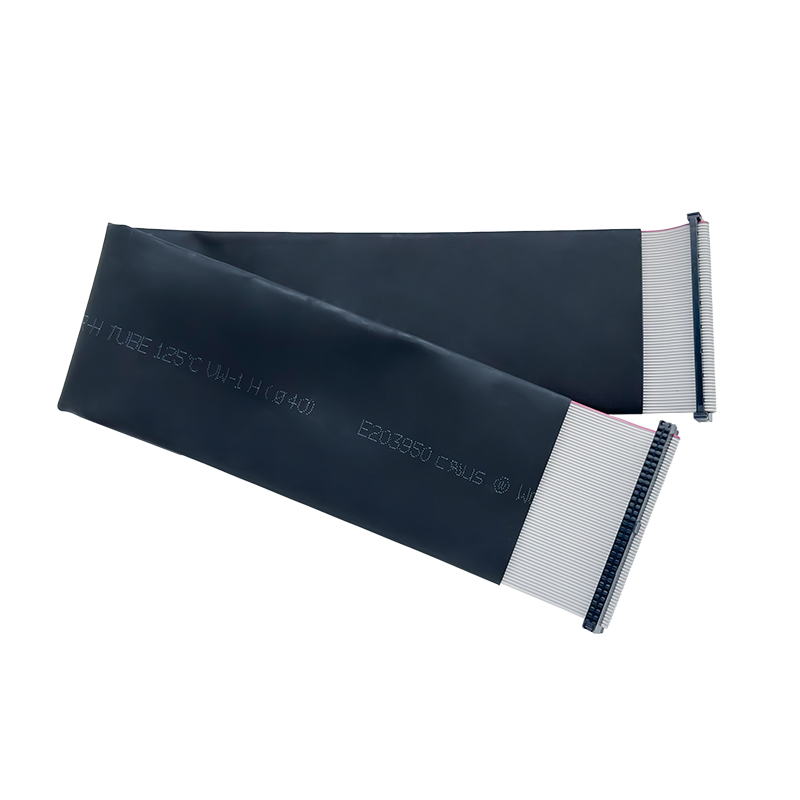

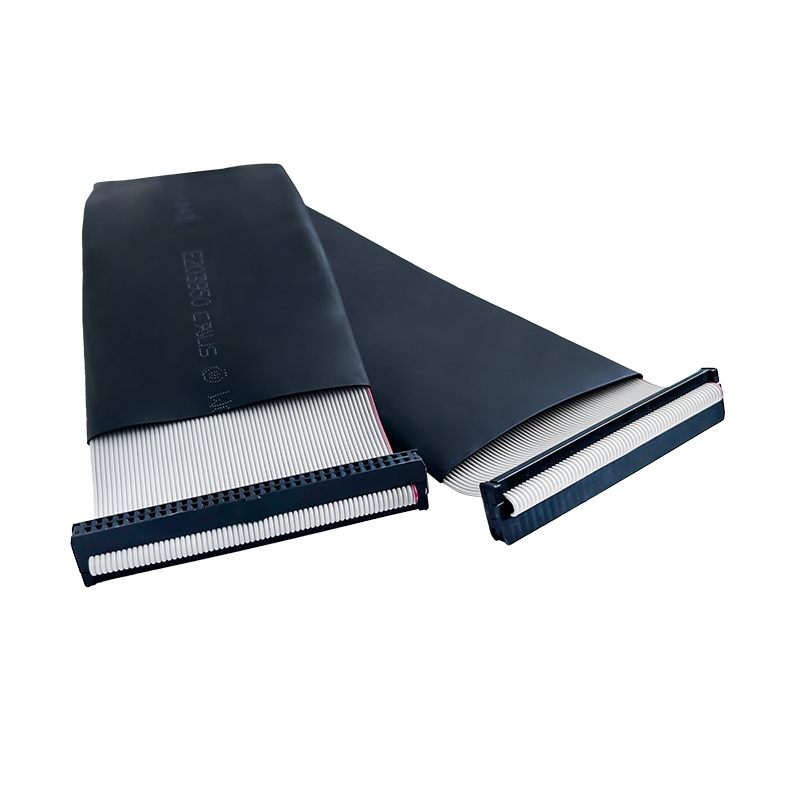

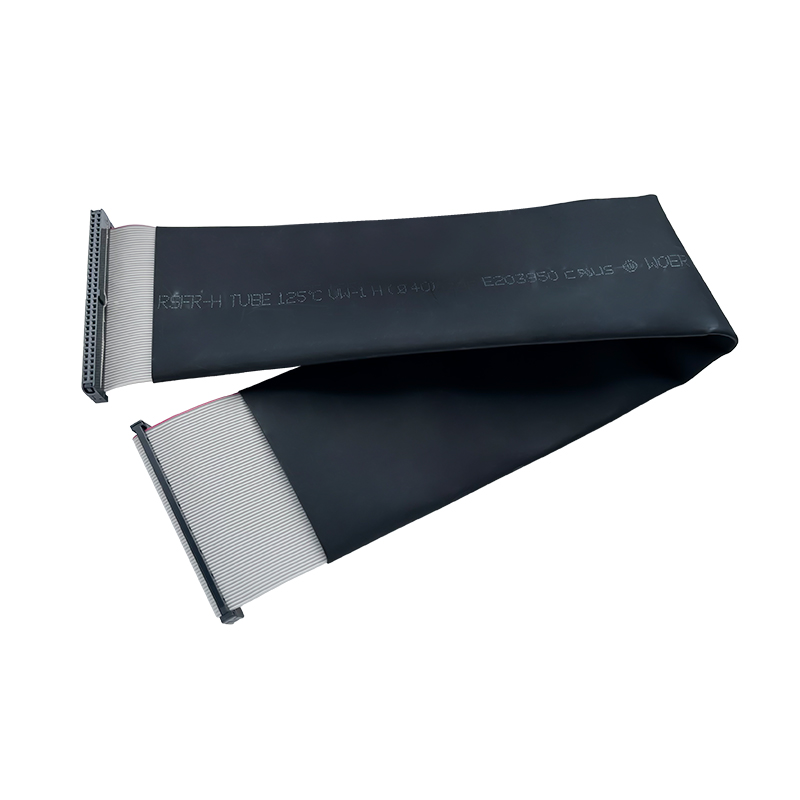

Our 60-Pin 1.0mm Pitch IDC Ribbon Cable Assembly is engineered for high-density internal connections where space is limited but reliability is essential. This assembly provides a robust and secure solution for linking components within complex electronics.

We use premium UL2651 28 AWG gray flat cable to ensure stable signal integrity and consistent performance. Each end is expertly terminated with a 60-position (2x30) FC2.0 IDC connector. To guarantee a long service life, the connections are protected by durable black heat shrink tubing, which provides excellent strain relief and insulation.

As a specialist manufacturer, we support full OEM and ODM customization. While the standard length is 200mm, we can produce these cable assemblies to any length required to meet your specific project needs. This cable is the ideal choice for computers, control power supplies, charging devices, and other applications requiring a compact, dependable connection.


Specifications

Key Features:

• High-Density Connection: The 1.0mm fine pitch is perfect for modern, compact electronic devices, saving valuable space within an enclosure.
• Enhanced Durability: Equipped with black heat shrink tubing at the connector ends. This provides superior strain relief, preventing wire fraying and disconnection from vibration or bending.
• Reliable Signal Integrity: Manufactured using high-quality UL2651 28 AWG wire, ensuring stable and clear signal transmission for control and data applications.
• Secure Termination: IDC (Insulation-Displacement Contact) connectors provide a fast, reliable, and gas-tight connection by displacing the wire's insulation, eliminating the need for stripping.
• Fully Customizable: We are a manufacturer offering OEM/ODM services. We can easily customize the cable length to your exact specifications to ensure a perfect fit for your product.
• Versatile Application: An ideal solution for a wide range of uses, including internal computer wiring, industrial control systems, power supplies, and data transfer equipment.

Applications:

Our 60-Pin 1.0mm pitch ribbon cables are designed for high-density, board-to-board, and internal wiring applications where space is limited and reliable data transfer is critical. They are widely used across various industries, including:

• Industrial Automation & Control: Connecting sensors, actuators, PLC (Programmable Logic Controller) modules, and HMI (Human-Machine Interface) display panels.
• Computer & Peripherals: Internal connections for motherboards, drive arrays, printers, scanners, and copiers.
• Power & Energy: Wiring for control power supplies, power distribution units (PDUs), and internal connections within charging stations or power modules.
• Networking & Telecommunications: Used within servers, data storage systems, network switches, and routers for internal signaling.
• Test & Measurement: Ideal for custom test jigs, diagnostic equipment, and internal wiring of measurement devices.
• Medical Devices: Non-critical internal connections for monitoring systems, lab equipment, and diagnostic machines.
• Consumer Electronics: High-density connections within complex audio/video equipment, displays, and home automation systems.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
