Custom 20AWG Tubular Terminal Wiring Harness for Control Box

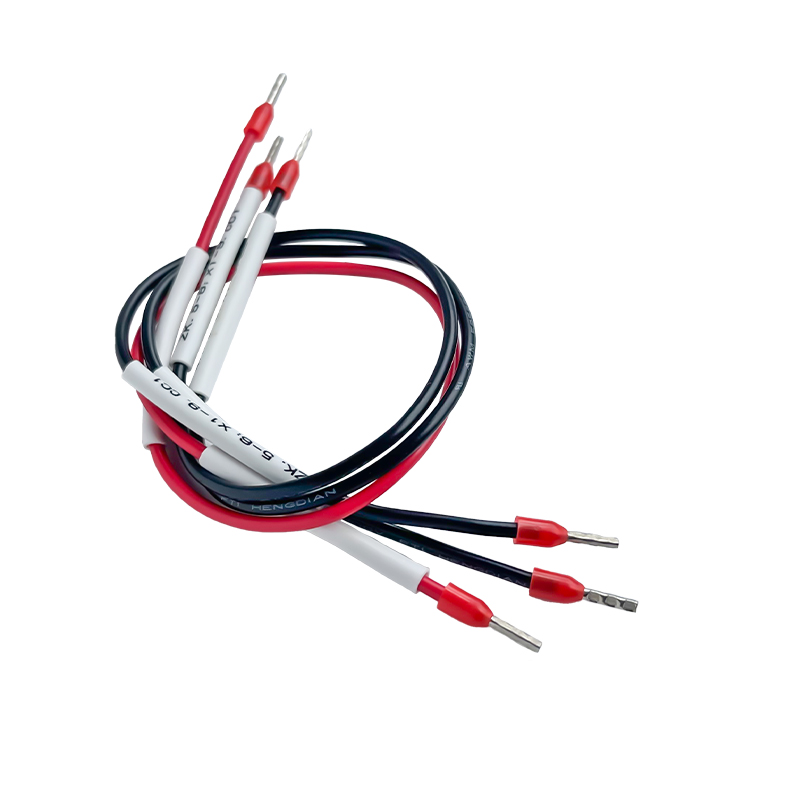

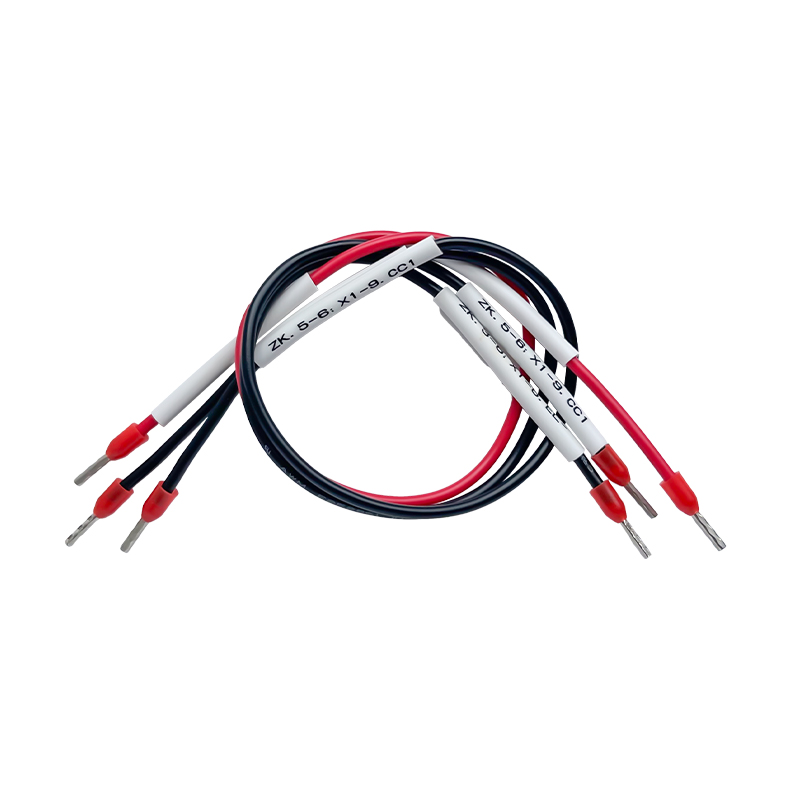

Custom UL1015 20AWG Tubular Terminal Wiring Harness

Designed specifically for high-demand electrical environments, this custom UL1015 20AWG wire harness integrates robust EVN7508 and ENV7508 red tubular terminals. The specialized red/black/black wire configuration is engineered with top-tier tinned copper to minimize power loss and maximize transmission reliability. It serves as an ideal internal wiring solution for industrial automation, renewable energy setups, and precision electronics requiring stable current flow and excellent thermal resistance. Whether you need standard or bespoke lengths, our factory delivers precise OEM solutions.


Specifications

Key Features:

• Maximized Power Transfer: By utilizing high-grade tinned copper conductors, this harness guarantees minimal DC resistance, ensuring that your devices receive consistent, efficient power without unnecessary drain or voltage drop.
• Thermal & Load Stability: Rigorously tested for continuous high-current operations. The 20AWG wire gauge paired with quality insulation effectively dissipates heat, preventing performance drops in demanding working conditions.
• Industrial-Grade Durability: The robust UL1015 jacket provides outstanding resistance against abrasion, high temperatures, and environmental stressors, securing the longevity of your internal circuitry.
• Flexible OEM/ODM Options: Supplied at a standard 300mm length, our facility can swiftly modify the wire dimensions, colors, and terminal types to match your exact schematic and routing requirements.

Applications:

• Renewable Energy Systems: Essential for connecting internal modules within solar inverters, converters, and battery storage banks.
• Industrial Control Panels: Delivers tidy, safe, and low-impedance power routing for complex machinery and automation control boxes.
• Telecom Infrastructure: Secures an uninterrupted power supply for sensitive communication routers, servers, and base stations.
• Electric Vehicle Infrastructure: Engineered to withstand the thermal demands of EV charging station power modules and internal assemblies.
• UAV & Aerospace: Provides a lightweight yet highly conductive wiring link for drone flight controllers and main power boards.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Are these tubular terminal harnesses suitable for high-temperature environments?

 Yes, the UL1015 insulation is specifically designed to handle elevated temperatures, making it safe for power modules and industrial control boxes.

 2. Can I request a different terminal type or wire color?

 Absolutely. As an OEM manufacturer, we can substitute the EVN7508 terminals with other specifications and adjust wire colors to match your schematic.

3. What is the MOQ for customized wire lengths?

Please contact our sales team with your specific length requirements. We offer flexible MOQ policies to support both prototyping and mass production needs.
