Custom connection Cable Assembly Wiring Harness for Charging Pile

Custom connection Cable Assembly Wiring Harness for Charging Pile

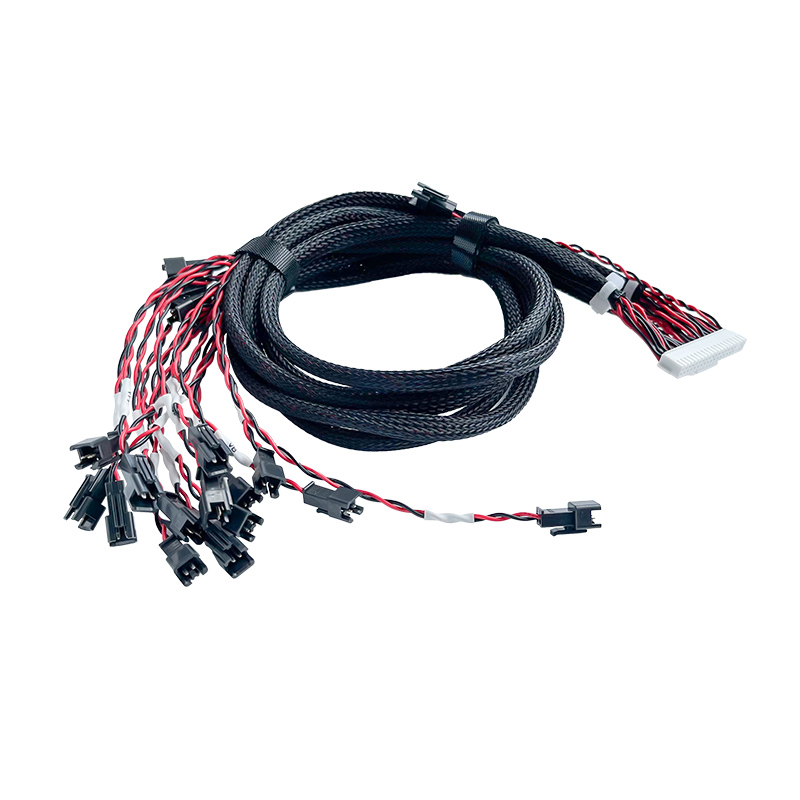

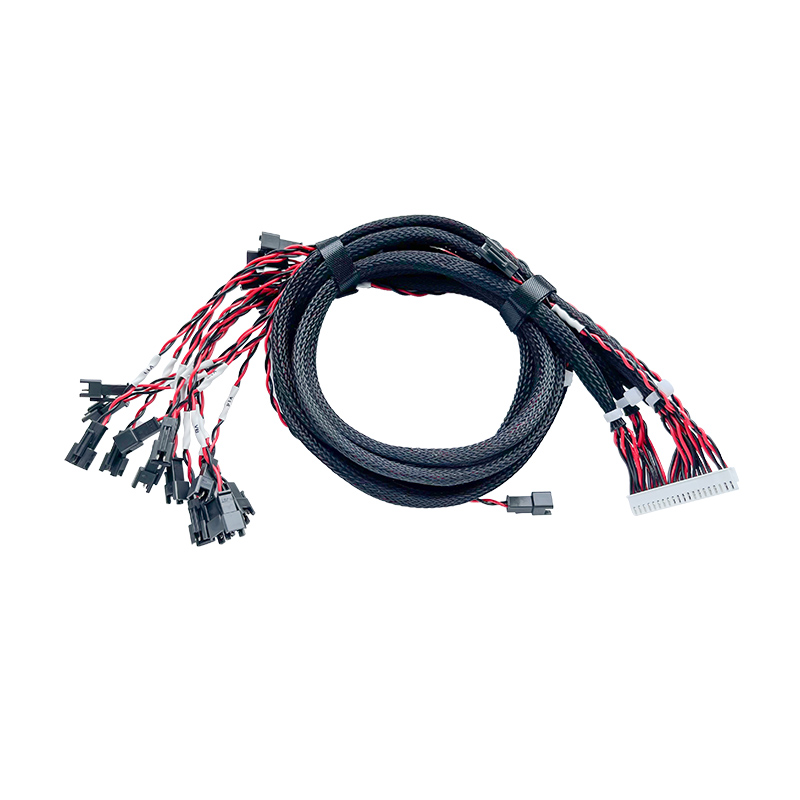

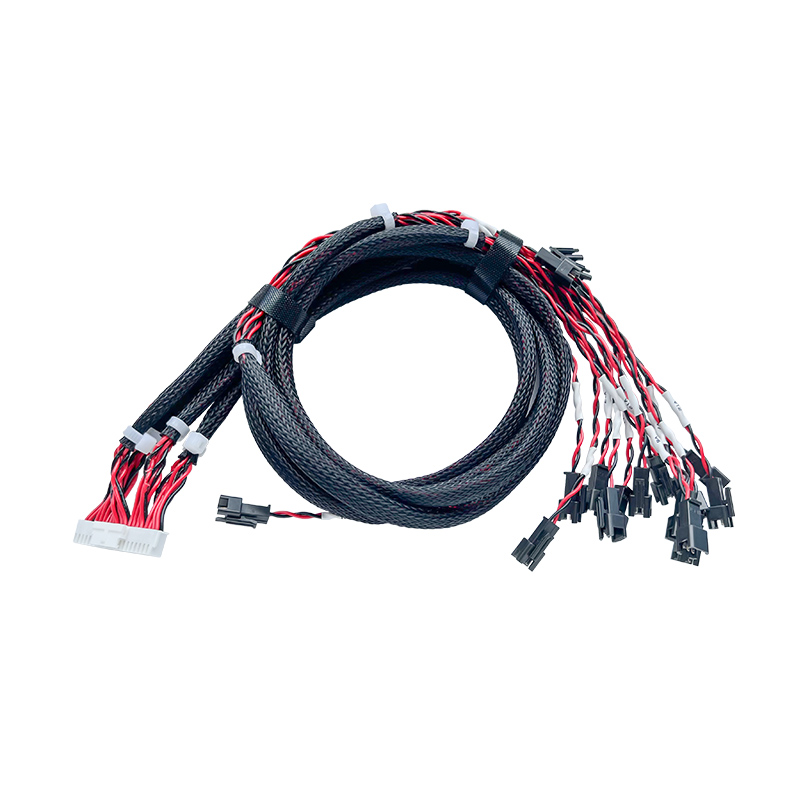

This custom cable assembly adopts 1007#26 red and black stranded copper wires for excellent conductivity and flexibility. Each wire set is equipped with SMR-02V connectors at various lengths, all connected to an A2008H-2×20P interface. The harness is professionally assembled to guarantee efficient signal transmission and stable power output under continuous operation.

The wiring harness is ideal for applications in EV charging stations, power control cabinets, and home energy storage systems, providing easy installation, consistent performance, and long-term reliability. Additionally, it supports customized lengths and connector types, making it suitable for different voltage, current, and environmental needs.

Lengths and terminal configurations can be customized according to project requirements, ensuring compatibility across a wide range of new energy applications.


Specifications

Key Features:

• Low Impedance and High Efficiency:Utilizing high-purity tin-plated copper conductors and precision craftsmanship, the harness achieves low DC resistance to minimize energy loss during transmission.
• Optimized Current Carrying Capacity:Scientific wire gauge selection and advanced heat dissipation design maintain stable working temperature even under continuous high-current load.
• Customizable Design:Wire length and terminal types can be tailored to meet different layout requirements and voltage levels.
• Reliable Performance:Stable current delivery ensures consistent electrical performance, reducing risk of voltage drop or overheating.

Applications:

• Charging Pile Systems: Efficient and safe energy transmission between charging modules.
• Control Power Supply: Reliable connection for industrial and automation power units.
• Home Energy Storage: Ensures stable current flow for residential or hybrid energy storage devices.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
