Custom Length UL1332 New Energy Signal Cable Assembly

Custom Length UL1332 New Energy Signal Cable Assembly

This high-performance signal cable assembly is expertly engineered for the rigorous demands of the New Energy sector. Designed to ensure reliable data and power transmission, this wiring harness features premium UL1332 #22AWG conductors connecting precise IRISO (IMSA) and JAE terminals. Whether utilized in battery management systems (BMS) or internal vehicle communications, this harness offers fully customizable lengths to fit specific architectural needs. Wrapped in durable fabric tape for enhanced abrasion resistance, it combines robust mechanical protection with superior electrical stability.


Specifications

Key Features:

• Superior Conductivity & Low Impedance: The core utilizes high-purity tinned copper conductors processed with precision engineering. This design significantly lowers DC resistance, minimizing energy loss during transmission and ensuring high-efficiency performance vital for new energy applications.
• Optimized Thermal Management: Through scientific wire gauge selection and advanced heat dissipation design, the harness maintains a controlled temperature rise even under continuous current loads. This ensures the product performance does not decay over time, providing long-term reliability.

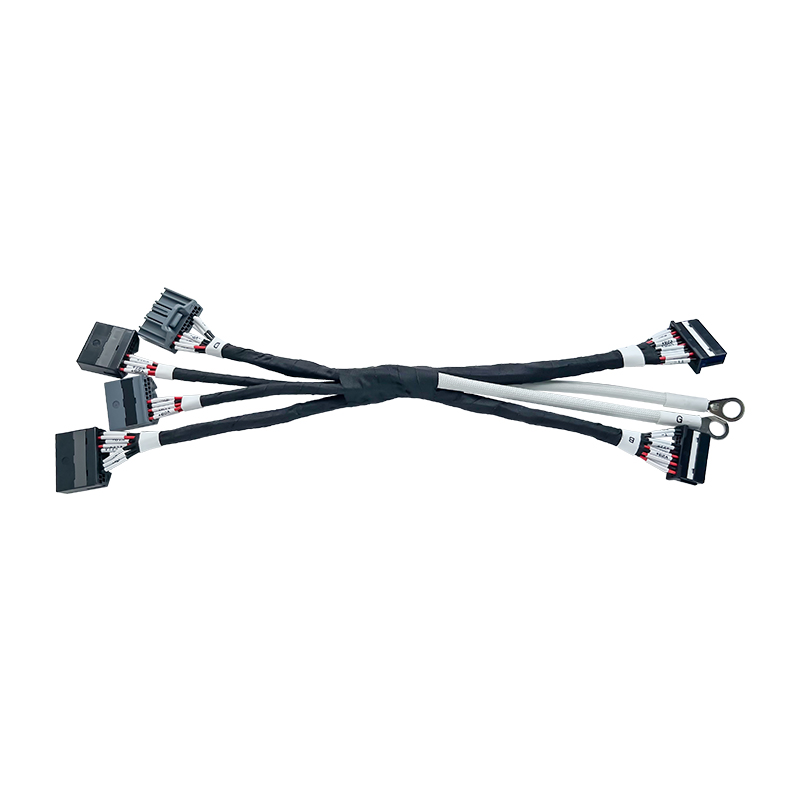

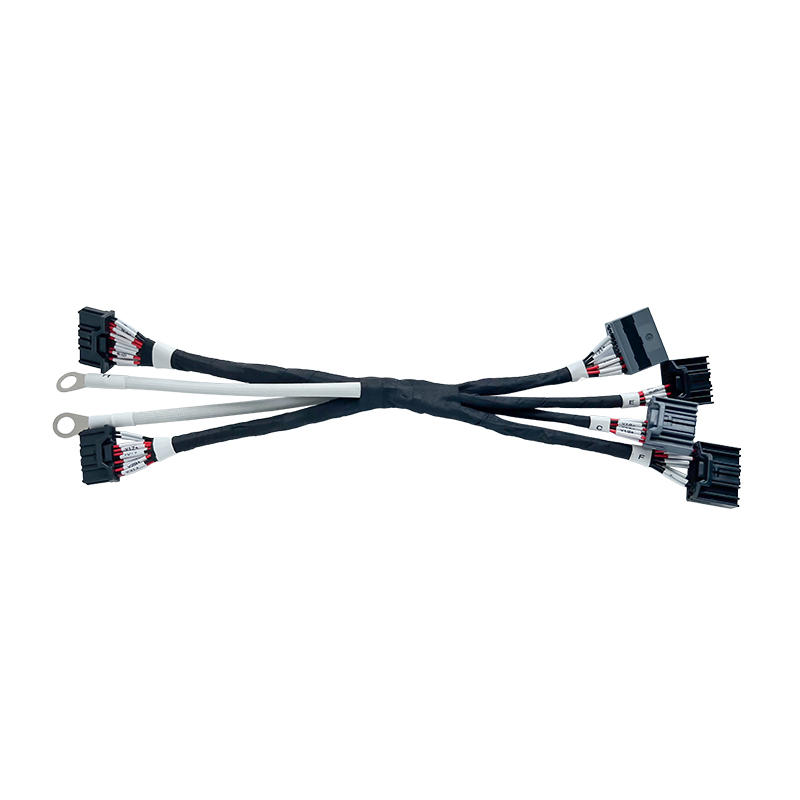

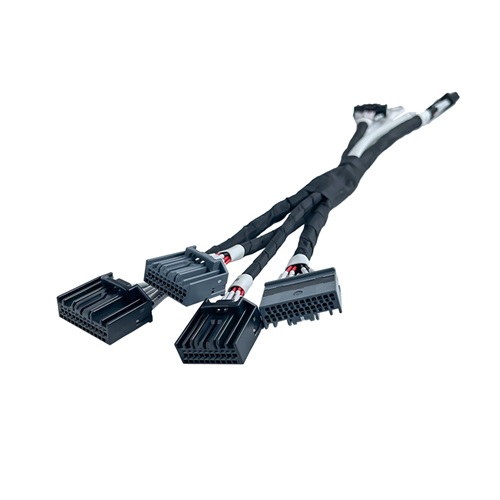

• Robust Connection Architecture: One end is terminated with high-precision IMSA-13065S series connectors, while the other splits into a quad-configuration of JAE MX34 automotive-grade connectors. This specific configuration ensures secure, vibration-resistant mating suitable for automotive and industrial environments.
• Durable Insulation: The entire wire body is wrapped in industrial-grade fabric tape, offering noise reduction, bundling security, and protection against physical abrasion and heat.

Applications:

• Battery Management Systems (BMS): Connecting battery monitoring units to main control modules.
• Electric Vehicle (EV) Control Units: Signal transmission for internal vehicle electronics.
• Energy Storage Systems (ESS): Internal wiring for commercial and residential energy storage stacks.
• Inverter & Converter Signal Lines: Data communication wiring within power conversion equipment.
• Automotive ECU Connections: Reliable bridging for electronic control units using JAE standards.

Why Choose Us?
Shenzhen Smart Connection Technology Co., Ltd. was established in 2008, integrating R&D, production, processing and sales of wiring harnesses for various electrical products. We have a professional scientific and technological research and development team, advanced production and inspection equipment, modern enterprise management, and strict quality assurance system. The company's products have passed UL safety certification and are widely used in various electrical products such as portable energy storage power supplies, household energy storage power supplies, industrial and commercial energy storage power supplies, lithium batteries, and industrial control boxes for sweeping robots.

After-sale Service:

• Technical support online service provided.
• OEM available.
• Our product with test report and certification
• Our product with 3 year warranty.

Packing & Delivery:

FAQ:

1. Does it support the customization of wiring harness?

 Yes, customized color and length options are available upon request to meet the needs of different applications.

 2. Does it comply with relevant safety and certification standards?

 Yes, our wiring harnesses comply with industry standards, such as UL, CE, etc., and have passed strict safety certification.

3. How can I get more information on the technical details and customization options for these harnesses?

You can contact our sales team for more detailed information on technical details, customization options and quotations.
